80kW Car Motor-Driving Motor Control Unit
- Home
- Products
- Motor Control Unit
IDHE80K – 80kW Vehicle Motor Driving Motor Control Unit
A motor control unit for driving the motor of the SUV electric vehicle which has 60kW continuous rated power (Peak power 80kW)
The power density is 9.2kW/l or higher and the weight, including the enclosure, is 16kg or less.
This MCU can be controlled by both resolver interface and CAN communication externally.
Features
- Controls all types of 3-phases motors
- Maximum efficiency: 97% or higher
- Adopt Hybridpack2 (Infineon IGBT)
- Apply SVPWM (Space Vector Pulse Width Modulation) topology
- Provides an engine table that allows individual programing for motor control
- Passive Interlock
- High and low voltage side insulation Fully galvanic isolation between high and low voltage circuit
- Resolver interface
Application
Range-Extended EV (SUV class)
Specification
| Contents | Unit | Value | |
|---|---|---|---|
| Power specifications | Rated DC Link voltage | V | 330 |
| Output frequency | Hz | 666 @ 10,000rpm 8 pole | |
| Switching frequency | 8000 | ||
| Continuous output capacity | kW | 60 | |
| Capacity | Maximum output capacity | 80 | |
| Maximum efficiency | % | 97 | |
| Environmental conditions | Operating temperature range | ℃ | -40 - 85 |
| Storage temperature range | -40 - 105 | ||
| Type | Weight | Kg | 16 |
| IP class | 65 | ||
| Size | Mm | 385 x 285 x 105 | |

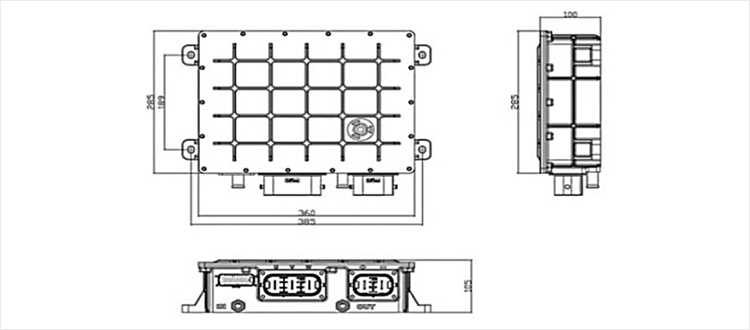

Dimension
